DigiTech TSR-24 True Stereo Reverb / Multi Effects Processors

Clicking on Thumbnail will open larger view.

Status: Demo Stock

From August 1994, a Demo Stock DigiTech TSR-24 True Reverb / Multi Effects Processors w/ S-Disc™ Processing on board. This TSR-24 has never been sold. It was occassionally and gently used for demo purposes in our on-site recording studio...

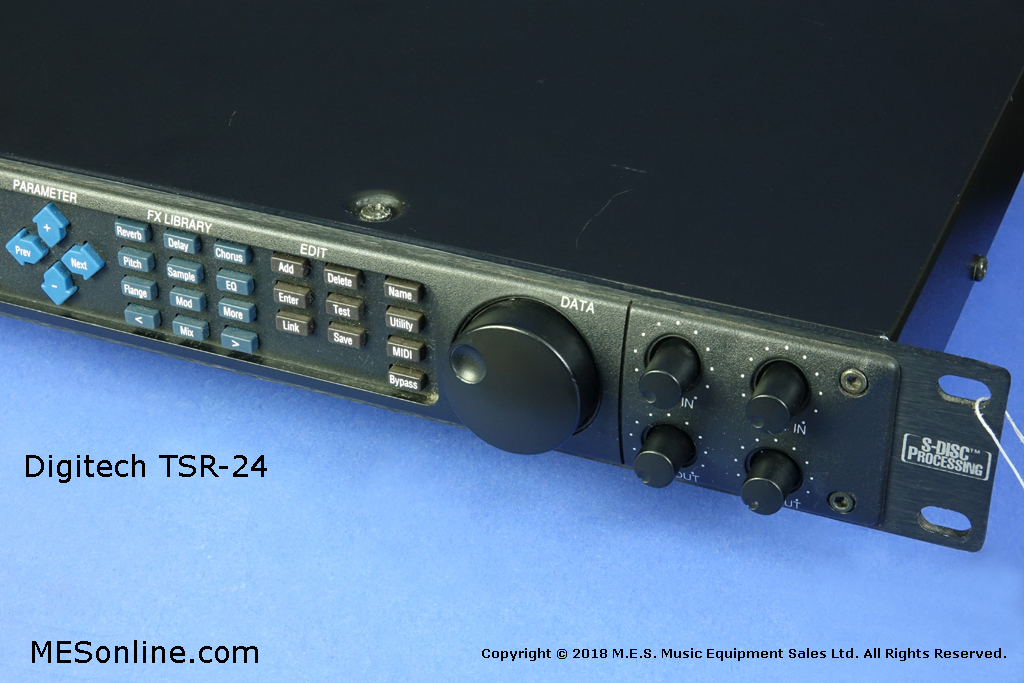

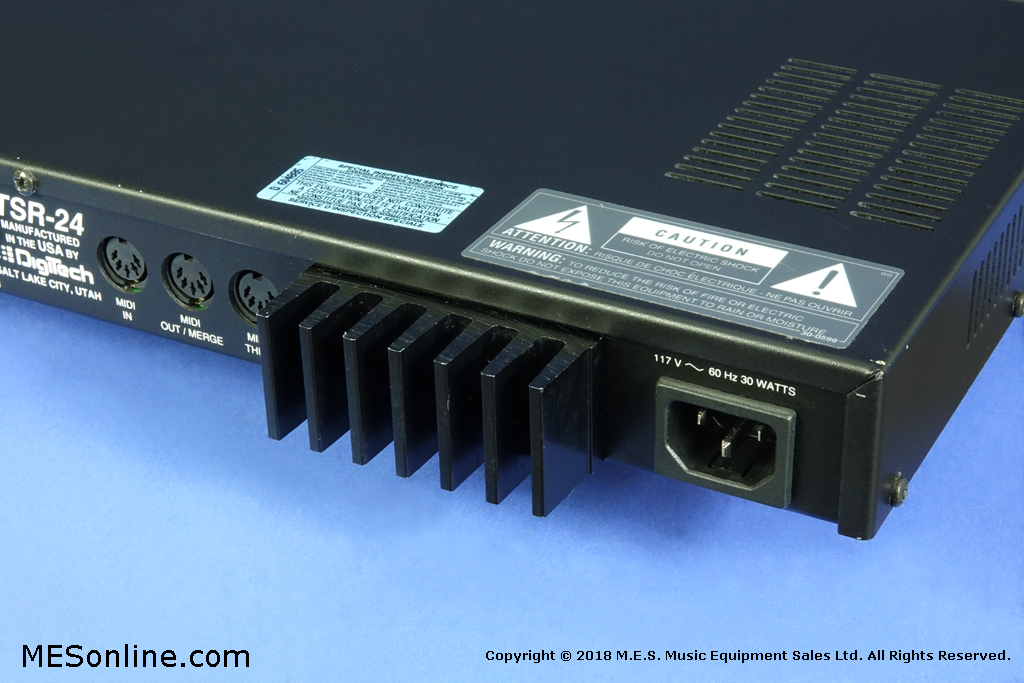

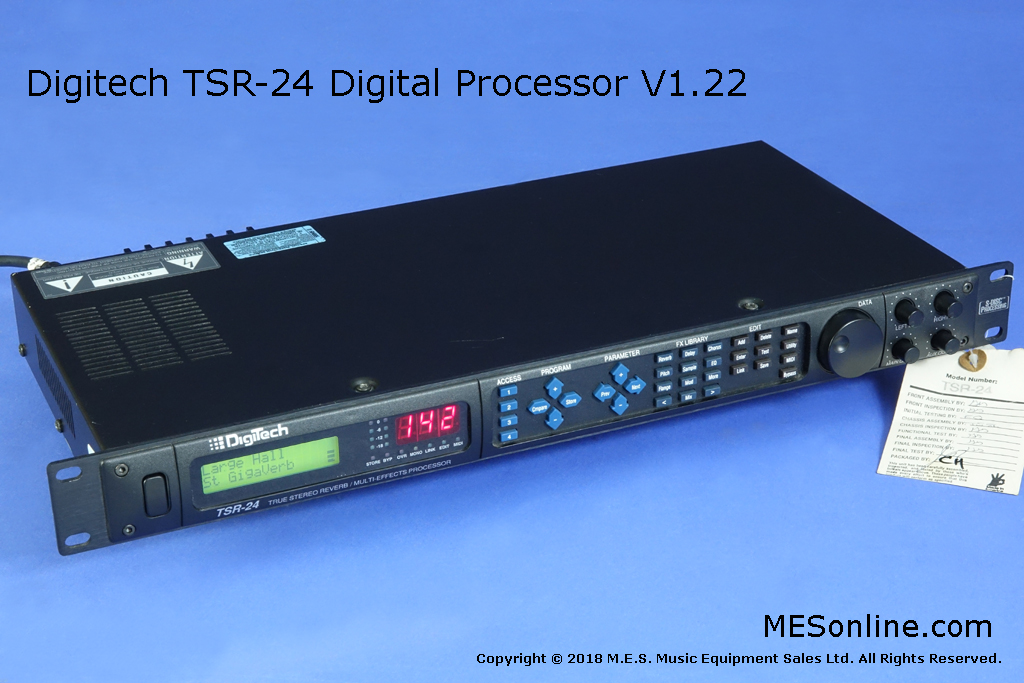

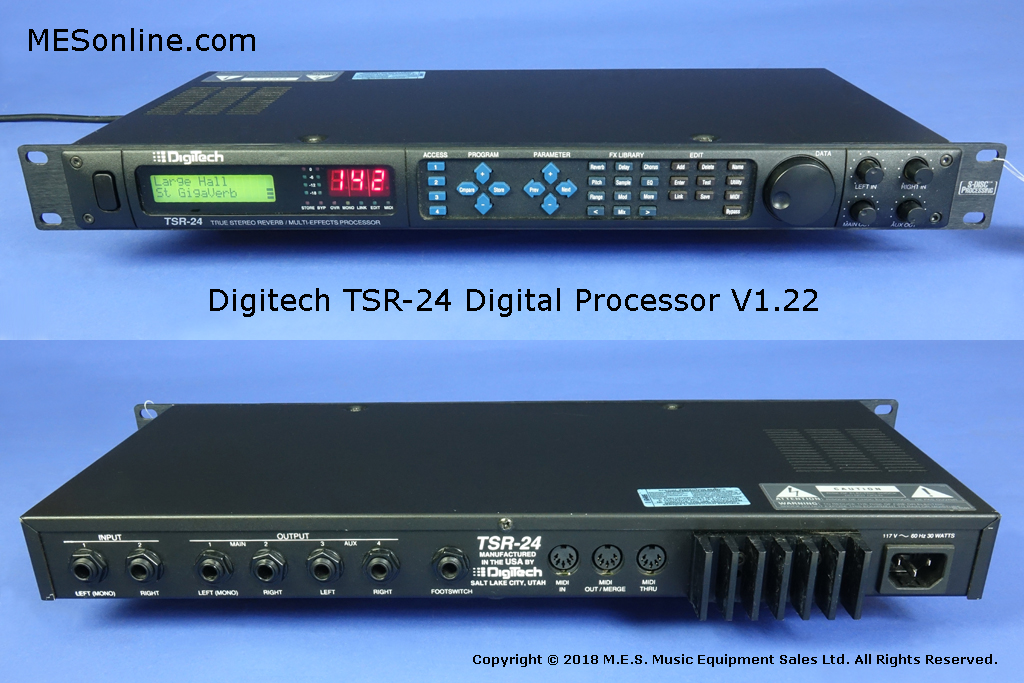

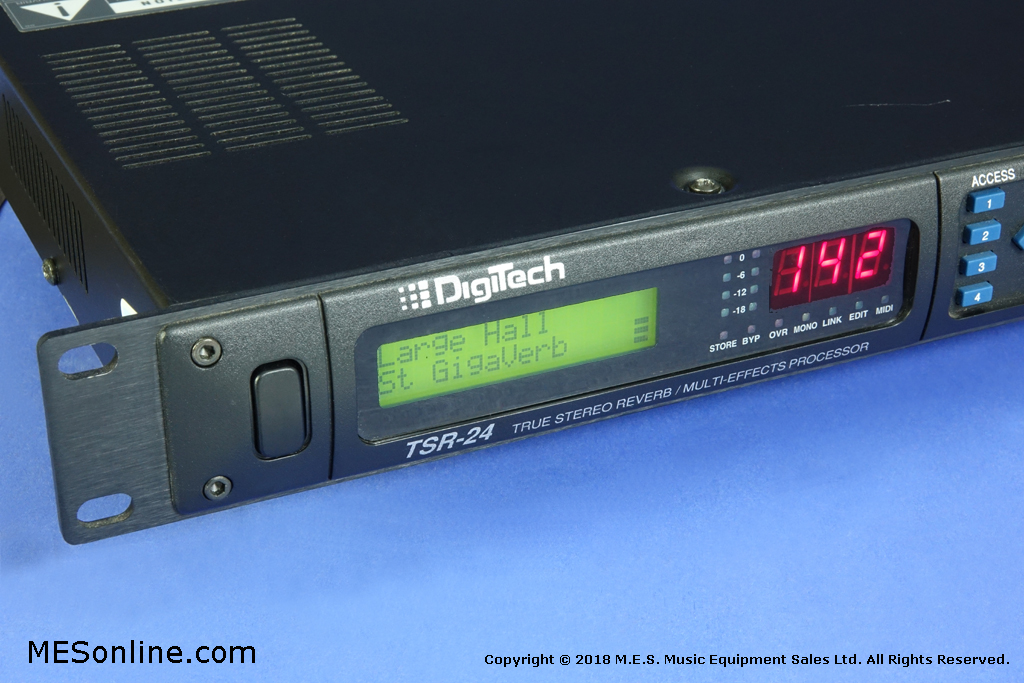

Accompanying images accurately describe the TR-24's appearance. I would rate it a conservative 8 out of 10. Quality digital processing, equally at home in your demo studio, PA System or guitar rack. Lots and lots of real useful effects...

About the DigiTech TSR-24:

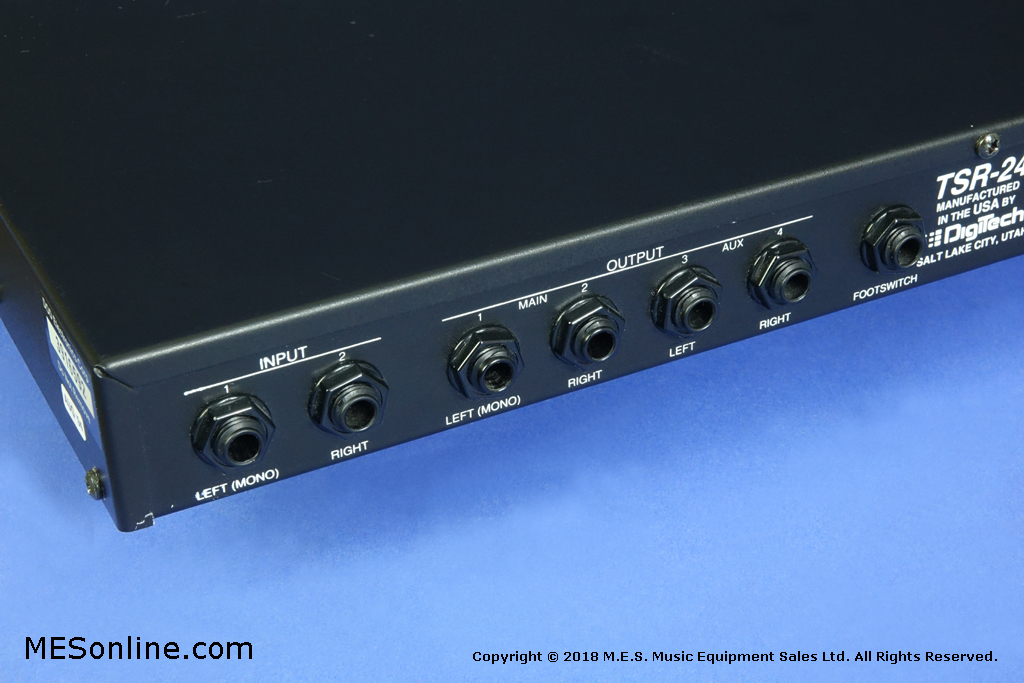

The TSR-24 offers true stereo operation, custom effects algorithm creation, 18-bit A/D & D/A converters, sampling, two sets of stereo outputs, comprehensive MIDI control, and the fact that it could be used as two discrete stereo processors. It is solidly built, which bodes well for live work as well as studio gigs.

Digitech's S-DISC based (Static/Dynamic Instruction Set Computer) processors produce some of the cleanest, most complex reverbs available in affordable packages.

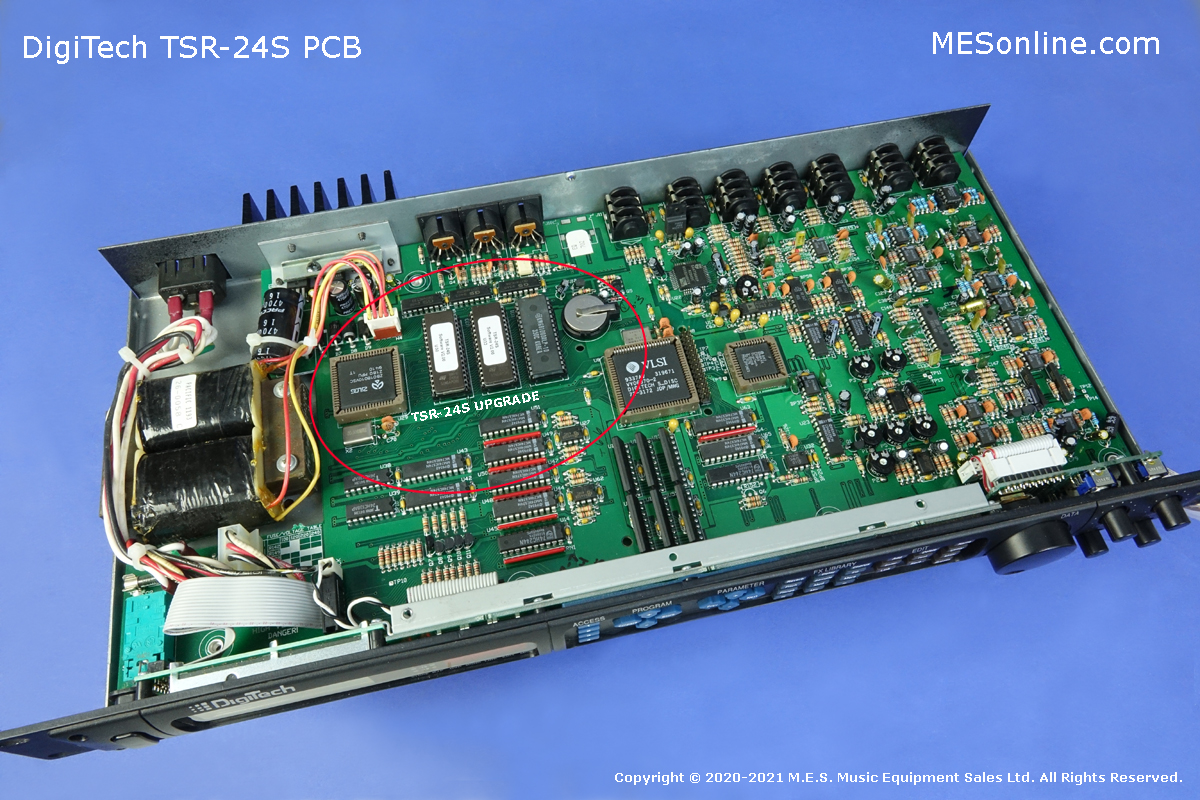

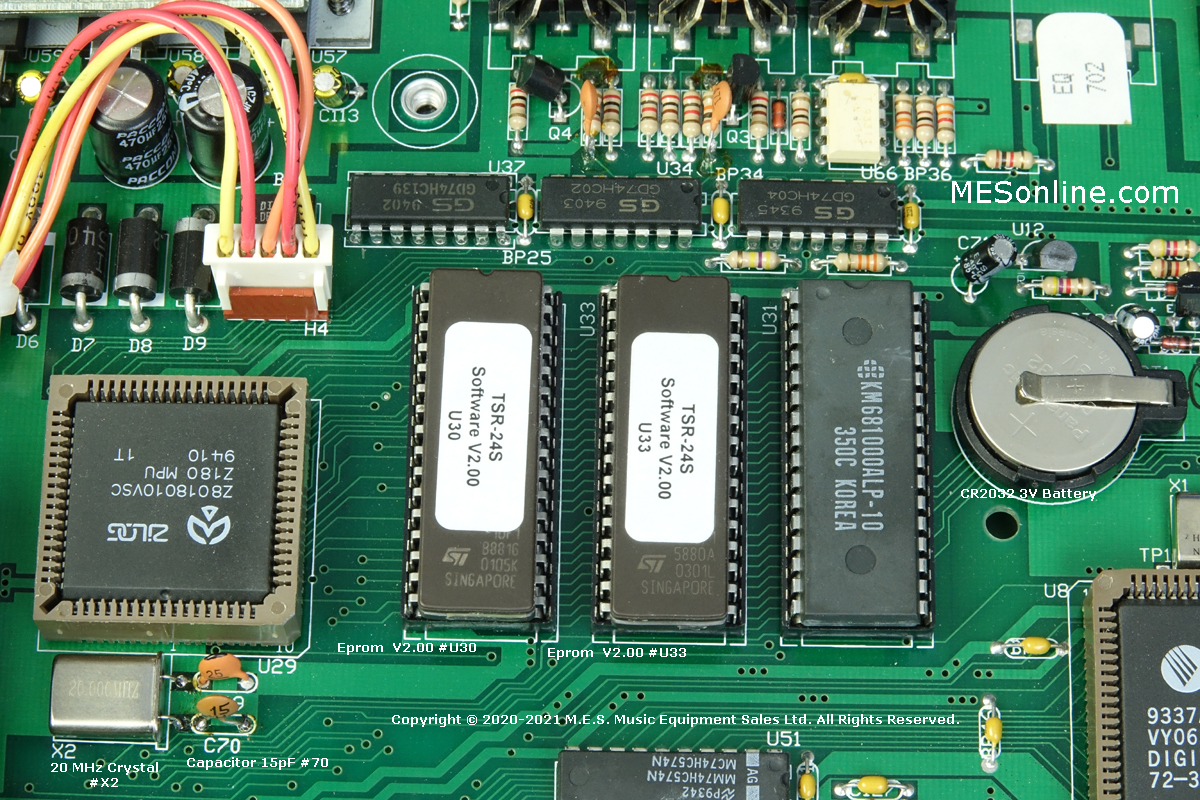

As shown in images #8 and #9, this DigiTech TSR-24 has been upgraded to TSR-24S Version 2.00. The upgrade consists of Digitech's top-of-the line 2.00 Firmware, along with a required faster 20Mz Quartz Crystal #X2 and 15pF capacitor #C70.

The Result:

• Fast, smooth performace
• Many new algorithms
• Increased maximum delay time
• Firmware supports the PPC-200 (IF you can find one!)
• Adjustable intelligent chromatic tuner (Manual Pg. 55)
• Faster program changes
• Higher multiplex speed of the 7 segment display and LEDs
• Faster expression controller responsiveness
• Faster speed of response to user commands
• Speeds boot up
• Speeds up refresh rate of the display
• Faster algorithm compilation

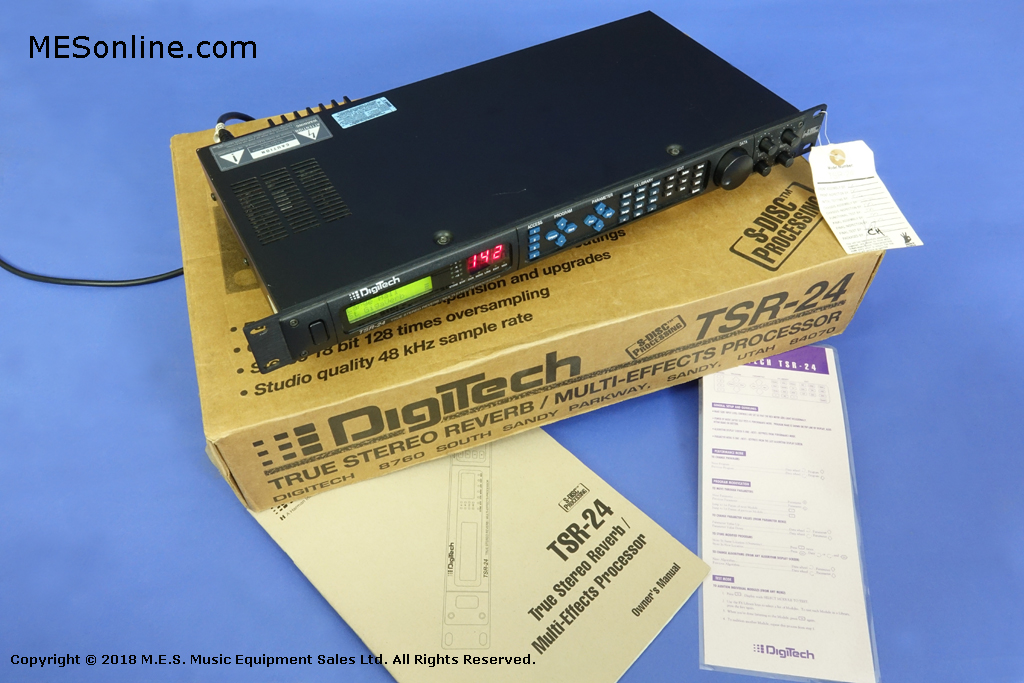

What's In The Box:

• The DigiTech TSR-24 Serial Number 3916592
• Owner's TSR-24 Manual. ...And, Click HERE
  for a PDF version of the original
• EIC Power Cable
• Rack Mount Screws w/Washers x 4
• NOT in the box: click HERE
  for the latest DigiTech TSR-24S Owners Manual

You can NEVER have too many Reverb/FX processors no matter what you do. This DigiTech TSR-24S offers an opportunity to add a solid, sweet sounding digital processor to your tool bag of tricks.

Our Price: $395.00 USD
